Custom Precision Roll Forging Machine Manufacturer Hongjie Elevates Efficiency in Industrial Metal Forming

Jinan, Shandong Oct 12, 2026 (Issuewire.com) - Precision roll forging uses opposed rotating dies with shaped contours to continuously deform metal billets into elongated preforms or finished components. Modern forging facilities increasingly move away from traditional open-die hammering because continuous rotational forming offers superior grain structure orientation, higher material yield, and reduced cycle times. However, selecting a reliable custom precision roll forging machine manufacturer requires balancing technical parameters against specific plant operational constraints. Finding the right precision roll forging machine supplier determines whether a production line achieves high-repeatability preforming or suffers from frequent die misalignment, flash variation, and operational downtime.

Key Technical Parameters and Structural Requirements

When evaluating a custom precision roll forging machine, procurement engineers and plant managers must look beyond basic nominal tonnage. Key technical parameters include roll shaft diameter, maximum working width, center distance adjustment capability, and continuous rotation stability under heavy mechanical loads. Shaft rigidity and bearing support directly prevent structural deflection during high-cycle deformation. Furthermore, precise die adjustment mechanisms ensure symmetrical metal flow, while flexible electrical controls allow seamless synchronization with upstream induction heating units and downstream trim presses. In high-volume component manufacturing--such as forging automotive connecting rods, agricultural blades, hand tools, or power line hardware--insufficient rigid support leads to shaft deflection. Deflection causes dimensional variance across long production runs, forcing expensive secondary machining operations or generating excessive material scrap.

To resolve these industrial challenges, engineering teams look to specialized equipment builders. Zibo Hongjie Forging Industry Equipment Co., Ltd. brings 30 years of technical expertise to the design and production of automated forging machinery. Operating under the Hongjie brand, the manufacturer builds rigid roll forging systems engineered to handle tough alloy steels and complex geometric preforms. By integrating customized roller die cavities with robust drive mechanisms, Hongjie helps metal forming facilities lower unit weight variation and improve material utilization across high-volume production lines.

Technical Bottlenecks and Failure Modes in Metal Roll Forging

Procurement failures in metal forming equipment often stem from misjudging the thermal and mechanical stresses imposed during preform shaping. A standard off-the-shelf precision roll forging machine may operate smoothly on basic mild steel rods but fail when processing alloy steels with narrow working temperature windows. Common technical bottlenecks include:

• Inconsistent Shaft Center Distances:Thermal expansion of rolls during multi-shift operations changes the gap between upper and lower dies, leading to thickness deviations in forged blanks.
• Rapid Die Cavity Wear:Suboptimal die steel selection or improper cooling surface design accelerates wear on critical draft angles, degrading batch consistency.
• Synchronization Misalignment:Mismatched rotational speeds between roll shafts generate torsional stress, resulting in surface lap defects or twisted workpieces.
• Integration Bottlenecks:Equipment that lacks flexible controls cannot seamlessly synchronize with upstream induction heaters, press units, or robotic manipulators.

Procurement teams must verify how a precision roll forging machine manufacturer mitigates these failure modes before placing an order. Mitigating these risks requires custom engineering, precise machining tolerances, and structural designs capable of absorbing heavy continuous impacts.

Engineering Custom Solutions for Diverse Industrial Applications

Industrial components require specific metal distribution along their longitudinal axis before final closed-die forging. In automotive connecting rod manufacturing, for example, a roll forging unit shapes a heated cylindrical billet so that material moves away from the shank and toward the big and small end eyes. This targeted mass distribution reduces required press forging force and minimizes flash waste. Similar preforming approaches benefit other high-stress transportation parts, including steering knuckles, suspension control arms, and drive shafts.

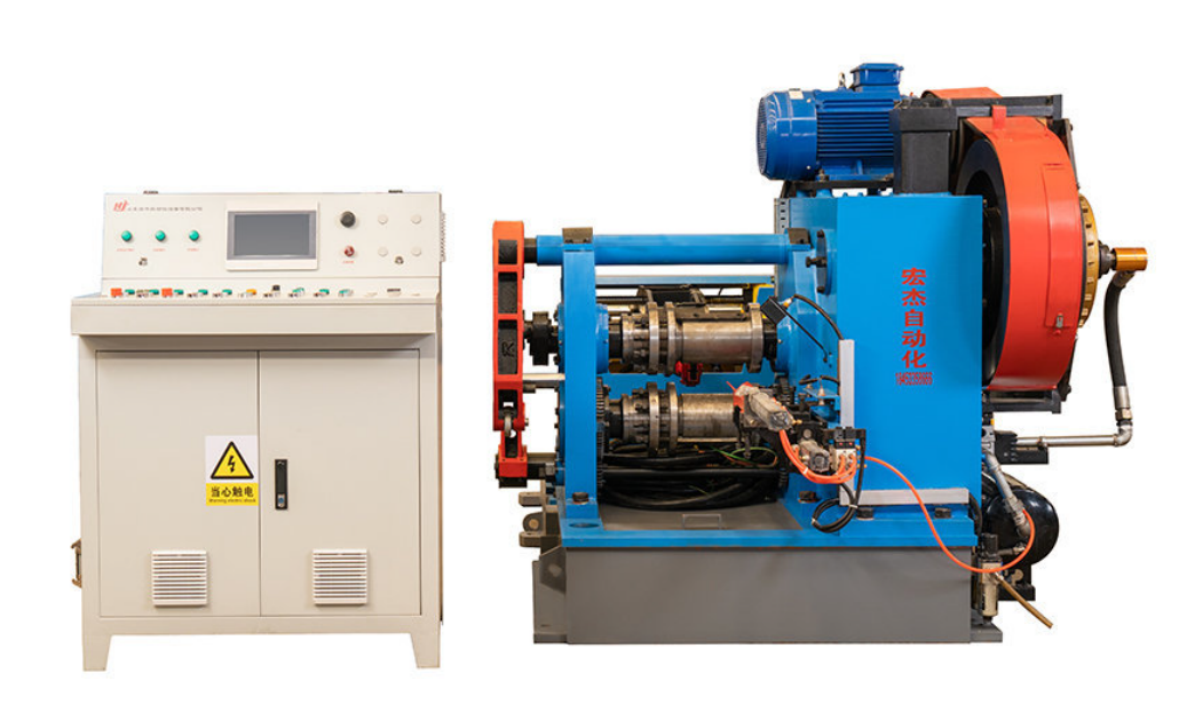

In construction and earthmoving machinery production, heavy-duty excavator bucket teeth require rapid reduction of thick steel billets into tapered preforms. Utilizing a heavy-duty model, such as the ZGD series produced by Hongjie, allows manufacturing plants to achieve rapid cross-sectional reduction in sequential pass sequences. Zibo Hongjie Forging Industry Equipment Co., Ltd. manufactures models ranging from compact units like the ZGD-260 to large-scale capacity models like the ZGD-1000, enabling forge shops to match machinery specifications to specific component mass and material grades.

Beyond automotive and earthmoving components, custom preforming systems serve manufacturers of hand tools, railway anchors, electric power fittings, and rigging hardware. For instance, utility tension clamps and insulator hardware demand consistent elongation without localized thinning. Tailoring roll shaft center distances, speed control, and feeding mechanisms ensures smooth material flow without surface micro-cracking across all these sector applications.

Evaluating Supplier Capabilities and Verification Standards

Selecting a qualified equipment supplier requires systematic verification of manufacturing and testing capabilities. Buyers should establish a thorough audit criteria list before committing capital:

• Custom Design Capabilities:The supplier must demonstrate in-house design experience, tailoring die profiles, shaft dimensions, and machine frames to specific customer drawings.
• Cooperative R&D & Technical Upgrades:Established relationships with design institutes and technical universities indicate ongoing engineering refinement and modern structural modeling.
• Quality Control & Testing Protocols:Frame castings, drive gears, and main shafts must undergo non-destructive testing and stress-relief processing to prevent operational fatigue.
• Comprehensive Line Integration:The manufacturer should supply complementary equipment, such as sawing machines, induction heating systems, electric screw presses, and trim presses, ensuring full line compatibility.
• Global Technical Support:Verify that remote technical guidance, spare parts availability, and after-sales service protocols are structured for international operating environments.

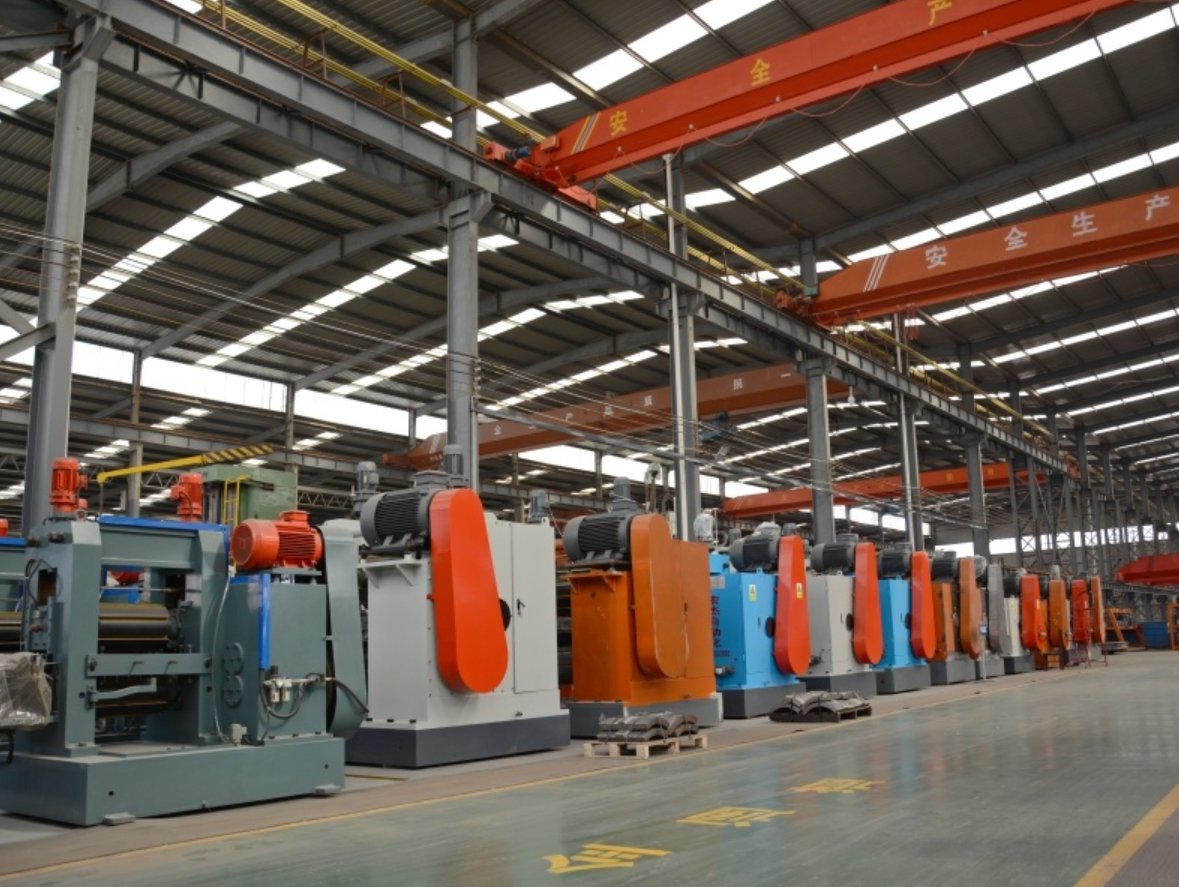

With 30 years of manufacturing experience, Zibo Hongjie Forging Industry Equipment Co., Ltd. has delivered nearly one thousand forging production lines to global industrial clients. Hongjie supports buyers with customized equipment engineering based on supplied component drawings, offering technical assistance from pre-sale layout design through operational maintenance.

Elevating Metal Forming Performance

Optimizing an industrial forging line requires equipment built for structural rigidity, thermal stability, and exact process synchronization. Working with an experienced machinery partner ensures that every roll forging unit integrates cleanly with induction heaters, mechanical presses, and automated material handling units. Plant operators achieve lower per-unit material costs, extended die life, and predictable production output by matching machine specifications to exact component requirements.

Explore complete machinery specifications, custom engineering capabilities, and production line solutions directly on the company's official website: https://www.hjforging.com/
